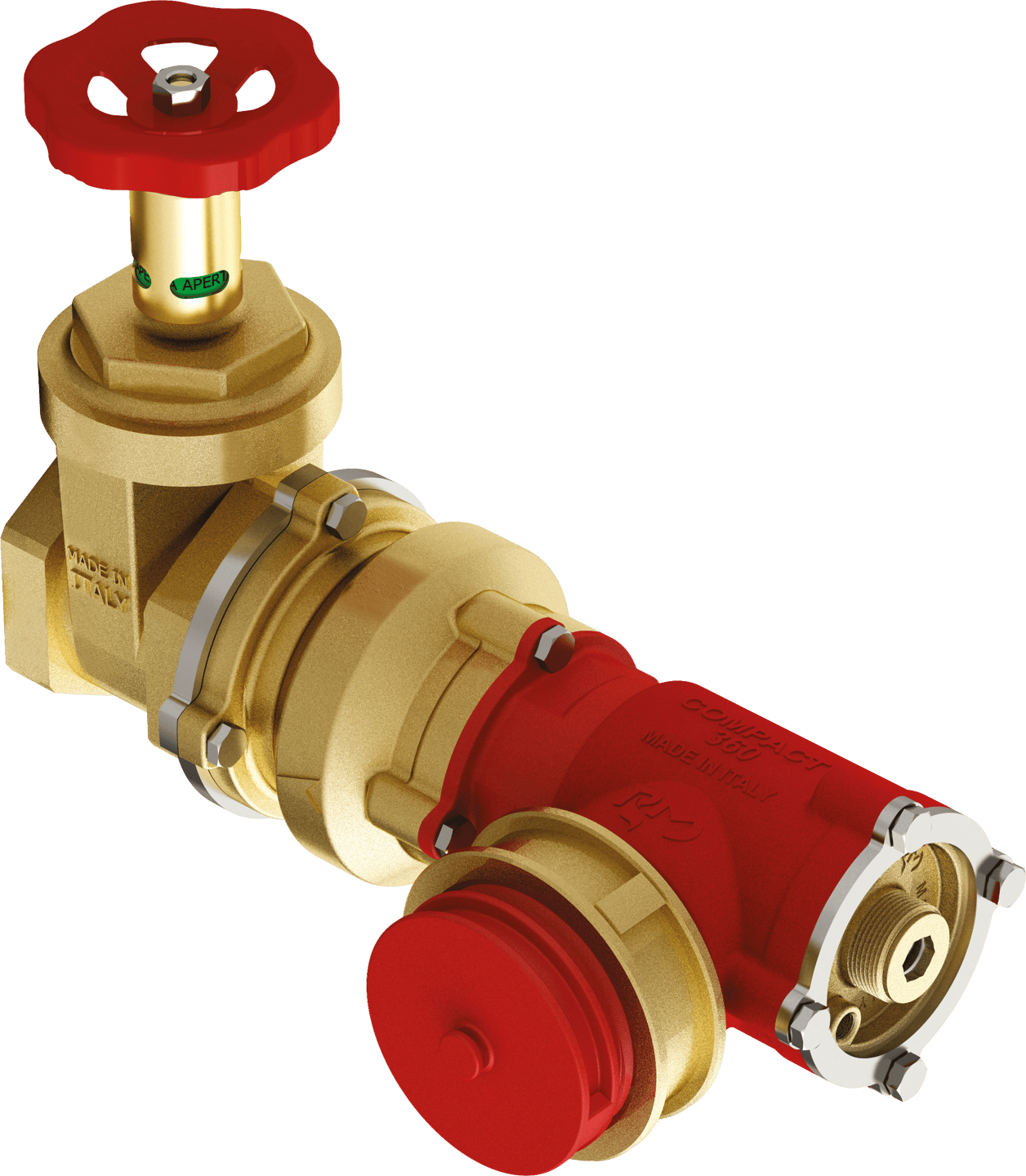

Compact 360 Feuerwehreinspeisung, Gewindeausführung

COMPACT 360 assemblies bring together the isolation, delivery and drainage components required for connection to the fire-protection network. The heavy-duty PN20 main shut-off gate valve (unpainted) is equipped with a position indicator that can be locked fully open in accordance with UNI 11443, and has a GAS ISO 228 threaded, PN16 flanged or grooved connection. The DN70 inlets have UNI 804 female swivel couplings, complete with automatic isolation valves and corresponding UNI 810 male-threaded caps operated with the UNI 814 operating key. The special spring-loaded check valve allows the COMPACT 360 to be installed in any position, including vertically. The entire assembly can also be oriented in any direction, or the individual DN70 outlets can be offset from one another, using standard stainless-steel bolts. At the end of the COMPACT 360 assembly is a technical cap with a pressure relief valve set to 12 bar and a threaded outlet for connection. For complete drainage of the assembly, there is also an automatic valve that can be oriented to suit the installation. The entire system can be inspected and its components replaced.
